TJ10B

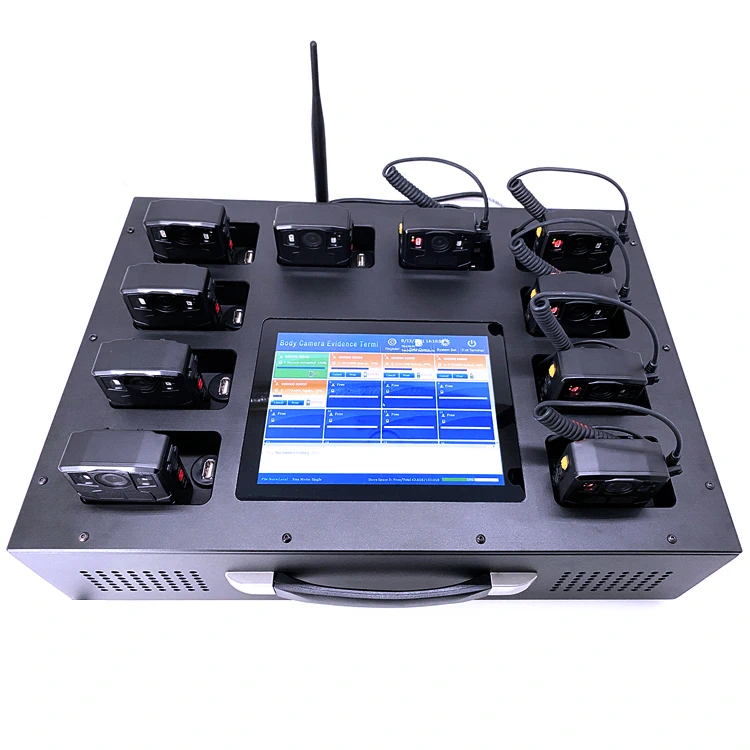

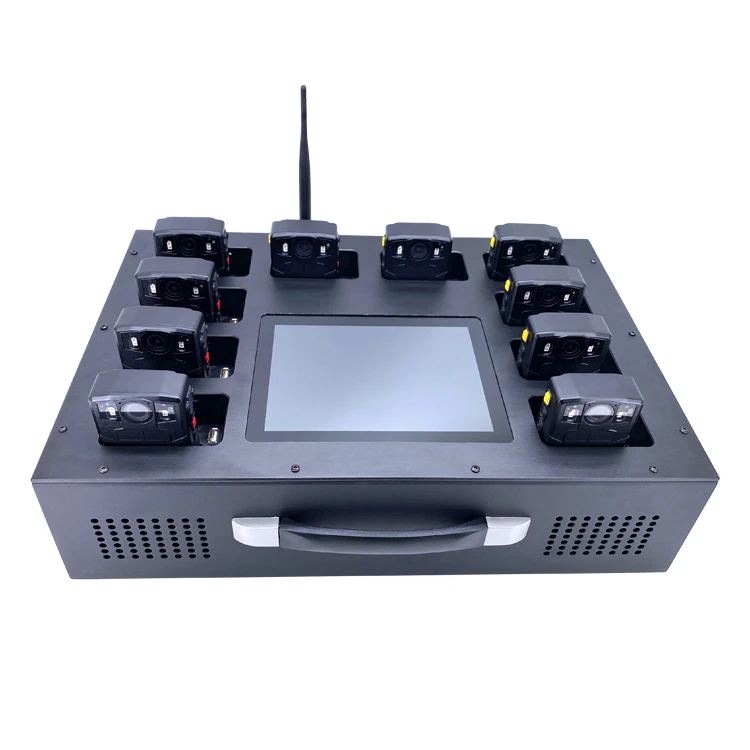

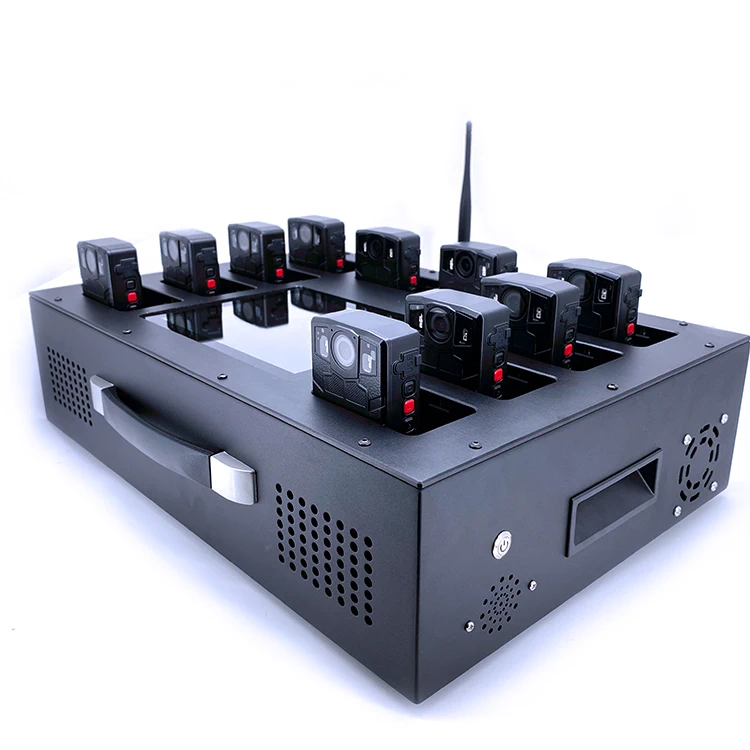

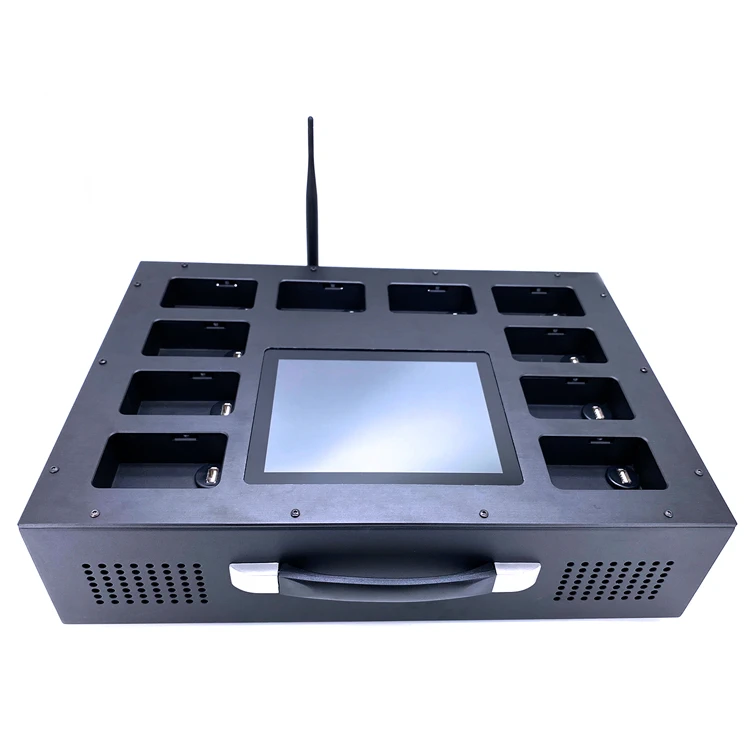

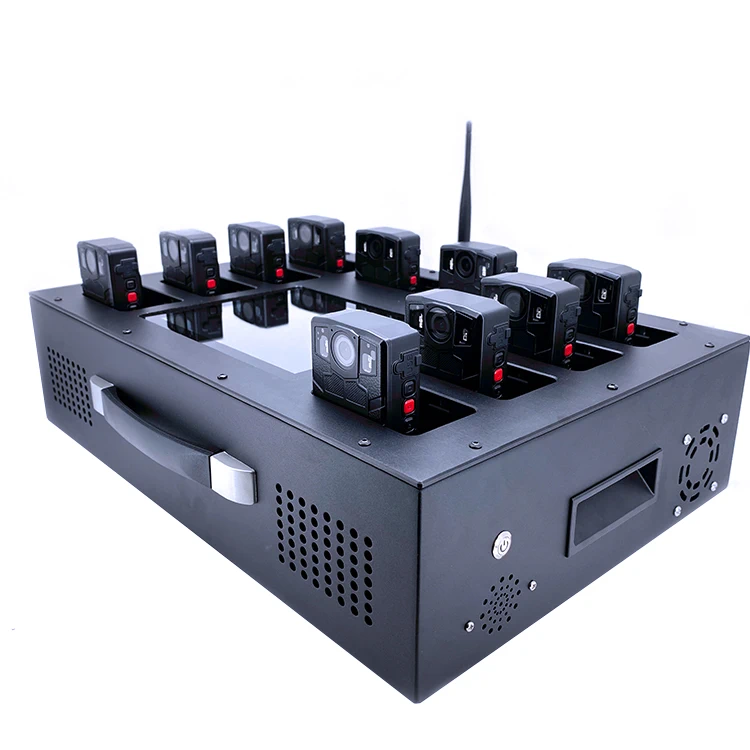

Universal system for automatic charging, storage and archiving of data with DVR.  It is a desktop vandal-proof structure in the form of a mini-terminal for 10 pcs. Docking station with built-in touch screen 8". Provides reliable fixation of the DVR via USB connection. Does not require connection to a PC. Compatible with the software to control the process of copying, archiving and charging DVR . The docking station suit for various types of wearable video recorders, allows you to upgrade the mini terminal for new types of DVRs without replacing the entire mini terminal.

Short Description:
Body worn camera docking station is the latest charging and data uploading device, which can connect up to 10pcs cameras, via USB3.0 port, compatible with the most of body cameras in the market.

Product Tags
Maximum Quantity of Supported Units: 10PCS

Features:
– All-metal structure, it is durable and tough ;
– Fully compatible with USB2.0/ USB3.0, and support hot-swappable;
– 8 inch touch-screen for quick review.
– The dock can charge 10 pcs cameras via USB cable;
– Built in one pc HDD ,and support 1pc removable HDD ;

Main SPEC :

Name Body Camera Docking Station
FunctionMulti-units data uploading and charging
Maximum Quantity of Supported Units10PCS
Screen8inch touch-screen,1024X768
SSDSSD 60G
USB interface2 USB2.0 ports,  2USB3.0 ports,
RAM4G
Hard diskBuilt in 1pc HDD and removable 1pc HDD(optional extra)
SystemDefault optional XP/Win8/Win10 the system Win7 system
Dimension450mm*300mm*100mm
Weight7KGS
